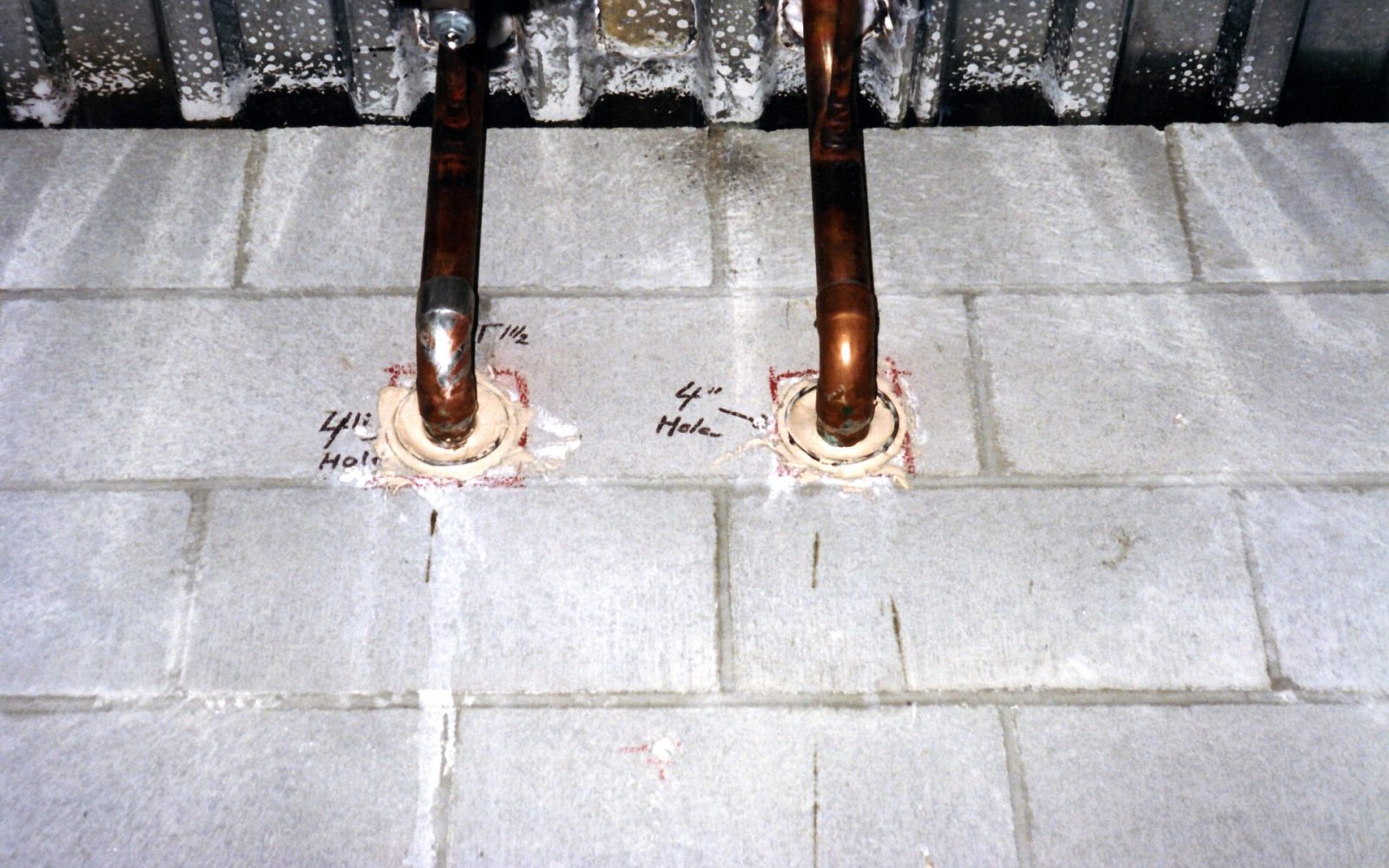

Intumescent Fireproofing Coatings
Intumescent coatings look like paint but swell into a thick, insulating char in a fire, slowing the rate at which structural steel heats up and buying time for evacuation and firefighting.
Key takeaways
- Intumescent coatings expand when heated, forming a foamed char many times thicker than the original film that insulates steel from fire.
- Thin-film (water- or solvent-borne) products serve commercial buildings exposed to cellulosic fires; epoxy intumescents serve industrial plants exposed to hydrocarbon pool and jet fires.
- Required thickness is not a fixed number: it depends on the fire rating, the test standard, the steel section’s size and its critical temperature.
- Fire ratings are only valid for tested, listed systems, including the specified primer and topcoat.
Structural steel loses strength as it heats, and in a severe fire an unprotected member can reach a temperature where it can no longer carry its design load. Passive fire protection slows that heating. Intumescent coatings do it with a relatively thin film that preserves the look of exposed steel, which is why they are widely chosen for architectural steel, airports, stadiums and process plants.
This article focuses on the coatings themselves: how they work, how they differ and how they are applied and inspected. For how intumescents compare with sprayed cementitious and fibrous fireproofing and how ratings are designed, see Fireproofing Structural Steel.
How intumescent coatings work
A typical intumescent formulation combines several functional ingredients in a binder:
- Acid source, commonly ammonium polyphosphate, which releases acid when heated.
- Carbon source, such as pentaerythritol, which the acid dehydrates into char.
- Blowing agent, such as melamine, which releases gases that foam the char.
- Binder and fillers that hold the system together and influence char strength; titanium dioxide and other fillers can help form a stable residue.
As temperature rises, the binder softens, the acid and carbon sources react to form a carbonaceous char, and the blowing agent swells it into a thick, low-density foam. Expansion is commonly tens of times the original thickness. The char’s low thermal conductivity slows heat flow to the steel. Epoxy intumescents produce a harder, denser char that resists the erosion and high heat flux of hydrocarbon fires.
Thin-film and epoxy intumescents
| Feature | Thin-film intumescent | Epoxy intumescent |
|---|---|---|
| Binder | Water-borne or solvent-borne (often acrylic or vinyl) | Two-component epoxy |
| Fire scenario | Cellulosic (building contents) | Hydrocarbon pool fire; some rated for jet fire |
| Typical rating tests | UL 263/ASTM E119, EN 13381-8, BS 476 | UL 1709, ISO 22899-1 for jet fire |
| Film thickness range | Often from a few tens of mils up to roughly 200 mils (5 mm) | Commonly a few millimetres to over 25 mm (about ⅛–1 in or more) |
| Durability | Interior or protected exterior with topcoat | Robust; suited to exterior, offshore and process environments |
| Typical use | Office, retail, airports, exposed architectural steel | Refineries, petrochemical plants, offshore platforms, LNG |
Epoxy intumescents are often reinforced with a mesh in the film to hold the char in place during intense fires. They also provide barrier corrosion protection, which is valuable in chemical processing plants.
How required thickness is determined
The required dry film thickness for a member is determined from the manufacturer’s tested and listed design data. Key inputs include:
- Fire rating, such as 1, 1½ or 2 hours for many building applications.
- Section factor, which expresses how fast a section heats: in North America often W/D (weight per foot divided by heated perimeter), in Europe Hp/A (heated perimeter over cross-sectional area). Lighter, thinner sections heat faster and need more coating.
- Critical or limiting steel temperature, set by codes or structural design.
- Exposure: three- or four-sided, beam, column, hollow section.
The fireproofing schedule then lists a required thickness for each member type. Applicators must achieve it everywhere, not just on average.
A fire rating applies only to the tested system. Substituting an unlisted primer, adding an incompatible topcoat or applying over galvanizing without an approved primer can invalidate the listing and may cause poor char adhesion in a fire.
Application and inspection
- Prepare and prime. Blast-clean steel as specified, often to near-white or commercial grade, and apply a primer listed as compatible with the intumescent.
- Check conditions. Thin-film products need suitable temperature and humidity to dry; high humidity can greatly extend dry times between coats.
- Apply in passes. Use airless spray (or trowel for some epoxy products), building to the required thickness in the number of coats allowed by the data sheet.
- Measure DFT. Use calibrated gauges and the inspection frequency required by the specification; subtract primer thickness. See Dry Film Thickness Measurement.
- Topcoat. Apply the listed sealer or topcoat for appearance, humidity or exterior protection.
Thin-film intumescent inspection in North America is often guided by AWCI Technical Manual 12-B, while project specifications define sampling and acceptance. Because thicknesses are high, use the wet/dry film calculator and frequent wet-film checks to stay on target.
Build a member-by-member thickness map from the fireproofing schedule before mobilizing. Applicators then know exactly which beams need extra build, and inspectors can record readings against the right target.
Advantages and limitations
Advantages
- Thin, paint-like finish that keeps steel visible
- Lighter than cementitious fireproofing
- Can be shop-applied to reduce site work
- Epoxy types add durable corrosion protection
Limitations
- Higher material cost than sprayed cementitious products
- Thin-film types are moisture-sensitive before topcoating
- Long drying times at high builds
- Strict system listing and thickness control requirements
Frequently asked questions
Can intumescent coatings be used outdoors?
Epoxy intumescents are designed for exterior and harsh environments. Many thin-film products are limited to interior or protected exterior exposure, often with a specific topcoat; check the listing and data sheet.
How thick is intumescent paint?
It varies widely. Thin-film coatings may be a few tens of mils for short ratings on heavy sections, while epoxy intumescents for hydrocarbon fires can be over an inch thick.
Can damaged intumescent coating be repaired?
Yes, using the same listed product and procedures to restore the required thickness, followed by the listed topcoat.
Do intumescent coatings protect wood?
Some products are formulated to reduce flame spread on wood and other substrates, but these are tested differently from structural steel fireproofing.
Educational reference. Coating performance varies by formulation. Always follow the manufacturer’s product data sheet, safety data sheet and your project specification.
