Polyurea Coatings

Polyurea coatings became commercially established in the late 1980s and 1990s and are now used for truck bed liners, secondary containment, waterproofing membranes, tank and pipe linings, and protective layers over foam and concrete. Their defining feature is reaction speed: most spray polyureas gel within seconds and can be walked on within minutes.

That speed changes how the material is applied. Polyurea cannot be mixed in a bucket and rolled out like an epoxy. It is metered, heated and mixed by impingement inside a spray gun, then deposited as a continuous, monolithic film that can be built to great thickness in multiple passes.

What is polyurea?

A polyurea system has two components. The A side is an isocyanate, usually an MDI-based prepolymer or quasi-prepolymer. The B side is a resin blend of amine-terminated polyether resins (polyetheramines) and amine chain extenders, plus pigments and additives. When the two meet, isocyanate groups react with amine groups to form urea linkages. Because amines react with isocyanates far faster than hydroxyl groups do, the reaction proceeds without catalysts and gels almost immediately.

This differs from polyurethane, where the isocyanate reacts with a polyol. The faster amine reaction outcompetes the isocyanate–water reaction, which is why polyurea is comparatively insensitive to ambient humidity and low temperature during cure.

Pure, hybrid and aliphatic polyureas

The industry distinguishes between products by what is in the resin side:

The slower, hand-applied branch of the family is covered in polyaspartic coatings. Most aromatic polyureas will yellow or darken outdoors without losing their mechanical properties, so an aliphatic topcoat is used where appearance matters.

Properties and performance

Spray polyureas are elastomers. Formulations commonly offer high elongation, often hundreds of percent, together with good tensile and tear strength, abrasion and impact resistance. The material can bridge hairline cracks, tolerate thermal movement and absorb impact. Exact values vary greatly by formulation and are listed on the product data sheet.

• Thickness: films from around 40 mils (1 mm) to 250 mils (6.4 mm) or more are common, applied in multiple passes without waiting for cure.
• Return to service: typically hours rather than days, which suits shutdowns and occupied facilities.
• Waterproofing: a seamless membrane with no laps or joints.
• Chemical resistance: good against water, many salts and dilute chemicals; resistance to strong solvents and acids varies and should be checked against the manufacturer’s chemical resistance data.
• Temperature: the cure itself can proceed at low temperatures, but substrate conditions still govern adhesion.

Application equipment

Polyurea is applied with plural-component spray equipment: a proportioner that meters both sides, usually at 1:1 by volume, heats them and pumps them at high pressure through heated hoses to an impingement-mix gun. Heating reduces viscosity so the components mix properly and atomize. Material temperatures and pressures are set from the manufacturer’s recommendations; pressures in the region of 2,000 psi (about 140 bar) or higher are typical.

Surface preparation and priming

Polyurea’s fast cure means it wets the surface only briefly before gelling, so it has little chance to penetrate or displace contamination. Adhesion therefore depends on preparation.

1. Clean. Remove oil, grease, release agents and loose material.
2. Profile. Abrasive-blast steel to the specified cleanliness and profile. Mechanically prepare concrete to the CSP range in the specification (see concrete surface preparation).
3. Check moisture and dew point. Substrates must be dry and at least the specified margin above the dew point; concrete moisture should be tested where the specification requires.
4. Prime. Apply the manufacturer’s primer, particularly on concrete, to seal pores and improve adhesion.
5. Spray in passes. Build thickness in crosshatched passes, checking wet thickness or using a gauge on test areas.
6. Inspect. Verify thickness, adhesion and continuity; holiday testing is common for linings.

Safety and quality control go hand in hand. Spraying polyurea creates isocyanate aerosols, so applicators normally use supplied-air respiratory protection, full skin protection and controlled spray zones as directed by the safety data sheet. On the quality side, keep a daily log of material temperatures, pressures, ambient conditions, batch numbers and thicknesses. Many specifications also call for retained sample patches sprayed alongside the work, which can later be checked for hardness, thickness and tensile properties if a problem arises.

Common applications

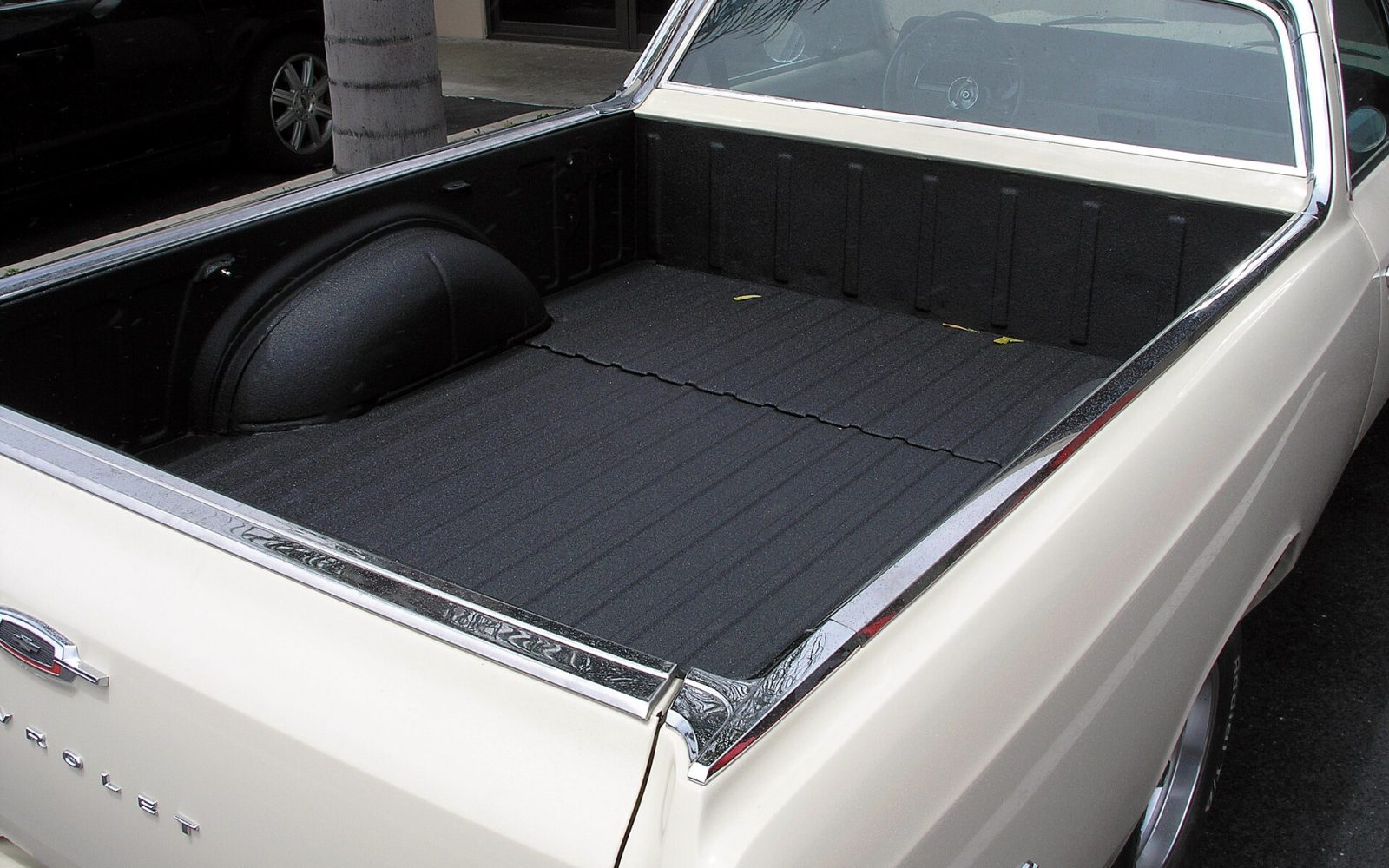

• Spray-on truck bed liners and vehicle protection.
• Secondary containment, tank and pit linings.
• Waterproofing of roofs, decks, tunnels and foundations.
• Protective coatings over foam insulation and geotextiles.
• Industrial floors, loading docks and ramps where speed of return to service matters.

Advantages and limitations

Frequently asked questions

Is polyurea better than epoxy?

Neither is universally better. Polyurea is more flexible and cures much faster, while epoxies are often harder, more chemical resistant and easier to apply without specialized equipment. Many systems use an epoxy primer under polyurea.

Can polyurea be applied by roller?

Conventional spray polyurea cannot, because it gels in seconds. Slower polyaspartic and some hand-applied polyurea formulations can be rolled or squeegeed.

Does polyurea need a primer?

On concrete, a primer is almost always used. On blasted steel, some systems go direct-to-metal, but many specifications still call for a primer. Follow the manufacturer’s system recommendation.

Why did my polyurea liner turn darker in the sun?

Aromatic polyureas discolor under UV. The change is mainly cosmetic; an aliphatic topcoat prevents it where appearance matters.
