Glass Flake Coatings
Glass flake coatings pack thin, overlapping platelets of glass into a resin film, creating a long, tortuous path that slows the permeation of water and chemicals through heavy-duty linings.
Key takeaways
- Glass flake coatings contain thin glass platelets that align parallel to the surface and overlap, greatly lengthening the path water and chemicals must travel through the film.
- Common binders are vinyl ester, isophthalic polyester and epoxy, including novolac epoxies for more aggressive service.
- They are applied as thick, high-build linings, typically 20–40 mils (500–1,000 µm) or more, for immersion, chemical, abrasion and high-humidity service.
- Good flake orientation, controlled thickness and thorough holiday testing are central to performance.
Every organic coating is permeable to some degree. Water, oxygen, ions and chemical vapors gradually diffuse through the polymer, and in hot or aggressive immersion that slow permeation is often what ultimately causes blistering and disbondment. Glass flake coatings were developed to slow it down by physically blocking the most direct routes through the film.
The concept is simple: thin flakes of glass, impermeable themselves, are dispersed in the resin. When the coating is applied and rolled, they align parallel to the substrate and stack like overlapping roof shingles. Any molecule that diffuses through the resin has to wind around the flakes, a “tortuous path” that can be many times the film’s actual thickness.
How glass flake works
Glass flakes are typically made from chemically resistant glass, such as C-glass or ECR glass, and are only a few micrometers thick but tens to hundreds of micrometers across. That high aspect ratio is what allows a stacked, overlapping structure. Flakes are often surface-treated with silane coupling agents to bond to the resin.
Beyond barrier, flakes provide several secondary benefits:
- Reduced shrinkage stress: the flakes interrupt the resin, lowering stresses from cure shrinkage, which is especially valuable in styrene-containing vinyl ester and polyester resins.
- Thermal expansion: the film’s coefficient of expansion moves closer to that of steel, reducing stress during temperature cycling.
- Abrasion and impact resistance: the hard glass improves wear performance in slurry, ice abrasion and mechanical damage.
- Crack arrest: flakes can deflect and blunt small cracks.
Binder types
| Binder | Strengths | Typical service |
|---|---|---|
| Vinyl ester | Excellent acid and solvent resistance, good heat resistance | Flue gas desulfurization (FGD), chemical tanks, chimneys |
| Novolac vinyl ester | Higher temperature and solvent resistance | Hot chemical service, ducts, scrubbers |
| Isophthalic polyester | Good water and moderate chemical resistance, economical | Water tanks, marine structures, general immersion |
| Epoxy | Good adhesion, alkali resistance, easier handling than styrenated resins | Ballast tanks, splash zones, buried pipe, ship hulls |
| Novolac epoxy | Higher chemical and temperature resistance than standard epoxy | Crude oil and process tanks, secondary containment |
Vinyl ester and polyester types cure by free-radical reaction initiated with a peroxide catalyst, giving fast cure and short recoat windows; epoxy types cure by conventional amine or other curing agents and follow longer, more familiar schedules.
Where glass flake coatings are used
- Power generation: FGD absorbers, ducts and stacks exposed to hot, acidic condensates; see Power Generation Coatings.
- Storage tanks: linings for chemicals, crude oil, produced water and hot water; see Storage Tank Linings.

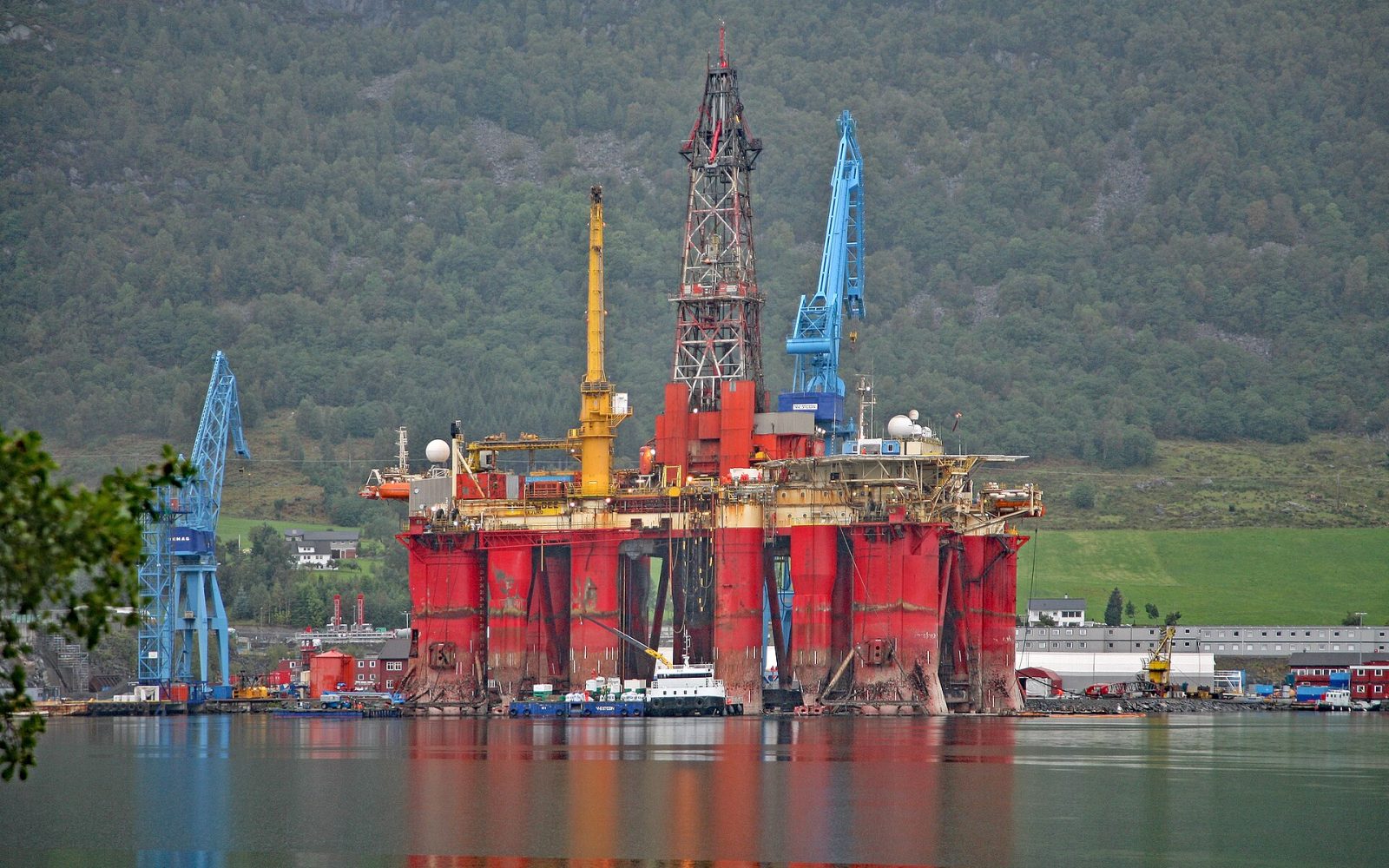

- Marine and offshore: splash zones, risers, ballast tanks and ice-going hulls exposed to abrasion and cyclic wetting; see Marine & Offshore Coatings.
- Industrial process equipment: pulp and paper, mining and chemical plant vessels and floors.
- Concrete: some systems are used in wastewater and chemical containment structures, with suitable primers.
Surface preparation and application
Because these are high-performance immersion linings, steel preparation is demanding. Specifications commonly require white or near-white metal blast cleaning with an angular profile, often in the range of about 3–5 mils (75–125 µm) for thick linings, and low soluble-salt levels.
- Prepare and prime. Blast to the specified cleanliness and profile, remove dust and apply the recommended primer within the allowable time.
- Stripe coat. Brush edges, welds and corners to ensure full coverage.
- Apply. Spray with heavy-duty airless equipment using large tip orifices and low-shear pumps that do not break the flakes, or apply by trowel for some heavy grades.
- Roll back. Many products require back-rolling with a solvent- or styrene-dampened roller to orient flakes, close pores and release trapped air.
- Build thickness. Apply the specified number of coats within recoat windows, measuring wet film frequently.
- Inspect. Verify DFT and perform high-voltage holiday testing before service.
Styrene-containing vinyl ester and polyester linings release flammable, odorous vapors and have short pot lives once catalyzed. In tanks, these hazards require confined-space procedures, forced ventilation, ignition-source control and careful catalyst handling. Follow the SDS and the manufacturer’s application guide.
Check the pump and tip recommendations on the product data sheet before mobilizing. Small tips, fine filters and high-shear pumps can damage flakes or clog repeatedly, reducing the barrier performance the coating was chosen for.
Advantages and limitations
Advantages
- Very low permeation for long immersion life
- Excellent abrasion and impact resistance
- Lower internal stress than unfilled thick films
- Wide range of chemical and temperature resistance by binder
Limitations
- Demanding application and equipment requirements
- Rough textured finish compared with smooth linings
- Styrenated binders have flammability and odor concerns
- Repairs require careful preparation and compatible materials
Frequently asked questions
Is glass flake the same as fiberglass?
No. Fiberglass reinforcement uses glass fibers or mat for strength. Glass flake uses thin platelets dispersed in the coating to reduce permeation and improve abrasion resistance.
Why do glass flake coatings need to be so thick?
Thickness lengthens the diffusion path and allows several layers of overlapping flakes. Immersion and aggressive chemical service typically demand high film builds.
Can glass flake coatings be applied to concrete?
Some systems are designed for concrete with suitable surface preparation and primers. Check the product data sheet and manufacturer guidance.
How are glass flake linings inspected?
By visual inspection, DFT measurement, holiday testing at the voltage specified for the thickness and, where specified, hardness checks for cure.
Educational reference. Coating performance varies by formulation. Always follow the manufacturer’s product data sheet, safety data sheet and your project specification.
