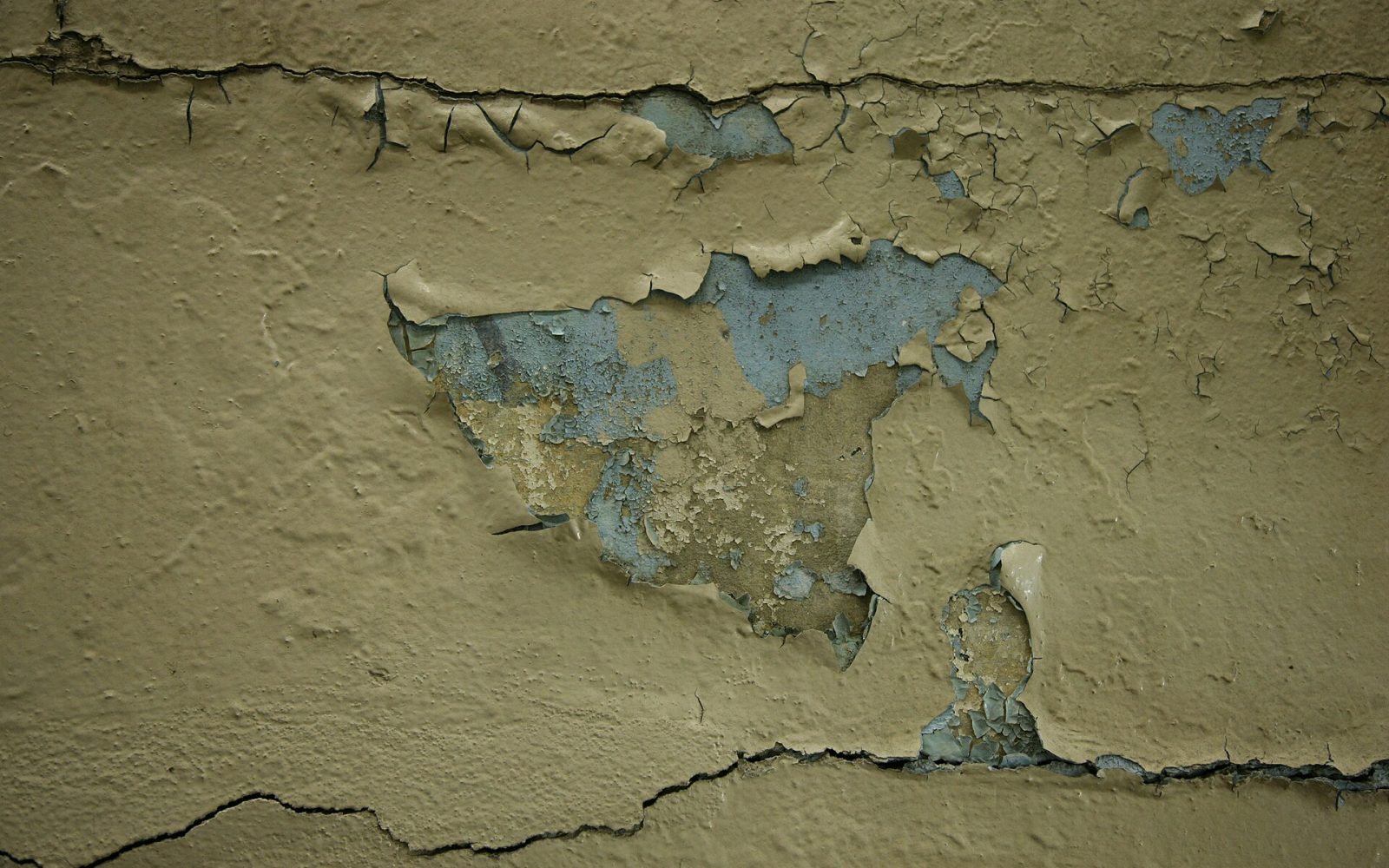

The Science of Adhesion
What actually holds a coating to steel, concrete or another coat: wetting, surface energy, mechanical interlocking and chemical bonds — and the forces that pull them apart.
Key takeaways
- Adhesion is the attraction across the interface between coating and substrate; cohesion is the strength within a single layer.
- Nothing bonds without wetting: the liquid coating must make intimate molecular contact with the surface.
- Practical adhesion combines mechanical interlocking, physical adsorption, chemical bonding and, between coats, polymer interdiffusion.
- Internal stress, water at the interface and contamination are the main reasons good initial adhesion is lost.
Almost every coating failure eventually becomes an adhesion question. Did the coating ever bond properly, or did a bond that once existed break down? Answering that requires understanding what adhesion is at the molecular scale and how surface preparation, application and service conditions influence it.
Adhesion versus cohesion
Adhesion refers to forces acting across an interface — coating to steel, primer to concrete, topcoat to intermediate coat. Cohesion refers to the internal strength of a single material. A pull-off test that breaks within the coating is a cohesive failure; one that separates cleanly at an interface is an adhesive failure. Distinguishing the two is central to delamination investigations, because they point to very different root causes.
Practical adhesion is also distinct from theoretical bond strength. The force needed to remove a coating depends on the interface, the coating’s stiffness and thickness, internal stresses and the test geometry, so measured values are comparative rather than absolute.
Wetting and surface energy
Intermolecular forces act over extremely short distances, on the order of molecular dimensions. A coating can only bond where it actually touches the surface. Wetting describes how well a liquid spreads and makes that contact.
A liquid spreads readily when its surface tension is lower than the surface energy of the solid. Clean metals and their oxides have high surface energy and are easy to wet. Many plastics, such as polyethylene and polypropylene, and contaminated surfaces covered with oil, silicone or mold release have low surface energy, so coatings bead up or bond weakly. The contact angle of a liquid drop is a simple indicator: low angles mean good wetting.
Wetting also has a time element. Lower-viscosity primers penetrate surface profile, pores and microcracks more completely before they set, which is one reason penetrating primers and sealers are used on concrete and weathered surfaces.
Low-surface-energy plastics usually need surface treatment — flame, corona, plasma or specialist adhesion promoters — before coatings will bond. See coating plastics for practical options.
The mechanisms of adhesion
Several mechanisms usually act together. Their relative importance depends on the substrate and coating.
| Mechanism | How it works | How to promote it |
|---|---|---|
| Mechanical interlocking | Coating flows into surface roughness and locks in when solid | Angular blast profile, concrete surface profile, sanding |
| Physical adsorption | Van der Waals forces and hydrogen bonds across the interface | Clean, high-energy surfaces and good wetting |
| Chemical bonding | Covalent or acid–base bonds between coating groups and surface sites | Primers with reactive groups, silane coupling agents, conversion coatings |
| Interdiffusion | Polymer chains from two layers intermingle | Recoating within the recoat window; solvent “bite” in compatible systems |
| Electrostatic | Charge transfer at the interface | Generally considered a minor contributor for coatings |
Why surface profile matters
Abrasive blasting creates an angular surface profile that greatly increases true surface area and provides mechanical anchorage. More area means more sites for adsorption and chemical bonding, and the jagged geometry deflects cracks running along the interface. A profile that is too shallow reduces anchorage; one that is too deep can leave peaks poorly covered. The specified range on the product data sheet balances both.
Intercoat adhesion
Between coats, adhesion depends heavily on interdiffusion and chemical reaction. Once a reactive coating cures past a certain point, few reactive sites remain and its surface becomes too dense for the next coat’s polymer to penetrate. That is the reason for maximum recoat intervals and for abrading or using tie coats on aged surfaces, as discussed in recoat windows and intercoat adhesion.
Internal stress: the hidden load
Even with no external force, a coating is usually under stress. Sources include:
- Cure shrinkage as solvent leaves and crosslinks form while the film is already attached to the surface.
- Thermal mismatch, because coatings expand and contract more than steel or concrete with temperature changes.
- Swelling from water or chemical absorption.
Stress scales with film stiffness and thickness. Thick, highly crosslinked films below their glass transition temperature store more energy, and that energy concentrates at edges, corners and defects. Excessive film build therefore raises the risk of cracking and disbondment even when the interface is sound.
Wet adhesion and how bonds fail
Water is the main enemy of adhesion. It permeates every organic coating to some extent, and water molecules can compete with coating molecules for bonding sites on metal oxides. Coatings whose adhesion depends mainly on weak secondary bonds can lose much of their strength when saturated, then partly recover as they dry.
Other pathways of bond loss include:
- Osmotic blistering, driven by soluble salts left on the surface.
- Cathodic disbondment, where alkalinity generated at cathodic sites attacks the interface.
- Corrosion undercutting spreading from damage or edges.
- Weak boundary layers such as mill scale, laitance, amine blush, chalk or dust that fail within themselves.
A coating is only as strong as the weakest layer beneath it. Before overcoating, check that existing coats, mill scale or concrete laitance are themselves sound; strong adhesion to a weak layer still fails.
Measuring adhesion
Common field and laboratory methods include pull-off testing on metals (ASTM D4541) and concrete (ASTM D7234), and cross-cut or X-cut tape tests (ASTM D3359) for thinner films. Each method gives a comparative value tied to its procedure, so results should always be reported with the failure mode and location. Details are covered in adhesion testing.
Frequently asked questions
Does a deeper surface profile always improve adhesion?
No. Adhesion improves with profile up to a point, but very deep profiles need more coating to cover the peaks and can leave thin spots. Use the profile range specified for the coating system.
Why does a coating peel easily when wet but not when dry?
Water at the interface displaces weaker bonds. Good wet adhesion requires clean surfaces, chemically bonding primers and coatings with low water permeability.
Is a high pull-off value proof of a good coating?
Not alone. A high value with cohesive failure in the coating shows the interfaces are strong, but long-term performance also depends on film thickness, cure, permeability and service conditions.
Educational reference. Coating performance varies by formulation. Always follow the manufacturer’s product data sheet, safety data sheet and your project specification.
